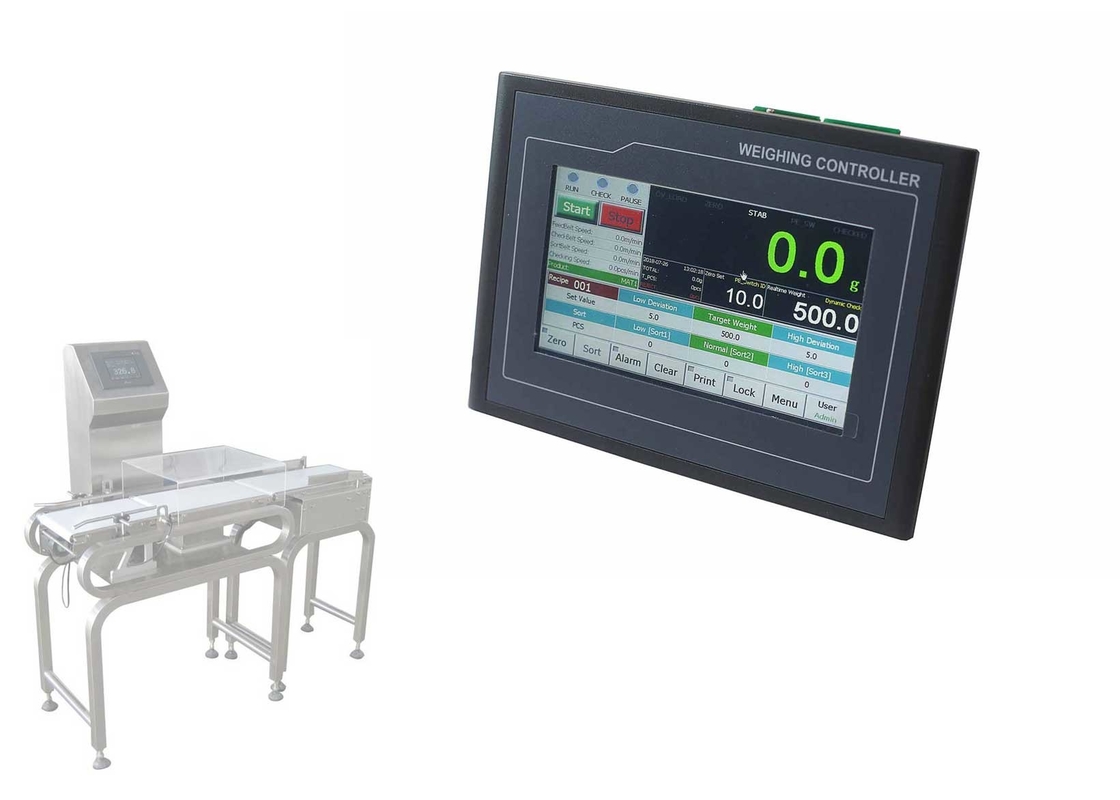

High-Accuracy Weighing Controller For Automatic Conveyor Checkweigher Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | SUPMETER |
| Certification: | CE |
| Model Number: | BST106-M10[CK] |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiating |

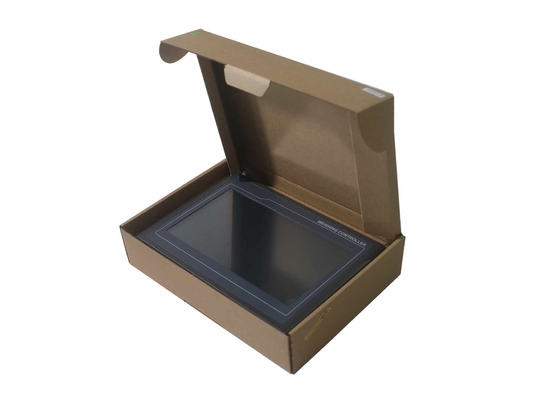

| Packaging Details: | Carton Box |
| Delivery Time: | 5-15 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 500pcs/month |
|
Detail Information |
|||
| Weight Display Range: | -99,999~+999,999 | Scale Capacity: | Setting Range 1~999,999 |
|---|---|---|---|
| Scale Division: | Optional 1, 2, 5, 10, 20, 50 | Display Resolution: | 1/100,000 |
| Highlight: | belt speed sensor,checkweigher load cell indicator |
||
Product Description
Main Applications
- Auto Checkweigher.
- Rejecting Mode [Low/Normal/High].
- Weight Sorting Mode [ 3-12 Sorting Areas].
Main Features
- EMC design with high anti-jam for industrial environment.
- DC24V power input with reverse polarity protection.
- Cortex-A8 CPU with 600MHz Clock, 128M Flash.
- 7” [800×480] or 10.2” [1024×600] TFT touch panel.
- 24-bit ∑-△ADC with internal resolution 1/1,000,000.
- High sampling frequency 800Hz.
- Special Anti-vibration Digital Filtering Algorithm for precise weighing, stable display and rapid response.
- Auto Zero Tracking.
- Static Calibration and Dynamic Compensation.
- Dynamic/Static Weight-checking Mode.
- Unchecked product identification by photo-electric switch.
- Feed-stopper Control.
- Conveyor PWM/AO Speed Regulation.
- Definable DI/DO/AO/COM[Communication Port].
- Recipe Number: 100.
User Login Interface
| Name | Operation | Note |
| 【Login】 |
User Login. Exfactory Passwords:
|
Operation ‘Main Menu / F5 User / Password / PSW Set’ for Modifying Password. |
| 【User Name】 | After password inputted, the matching User Name will be displayed. |
|
| 【Operate】 | Enter ‘Main User Interface’. | Operation ‘Main Menu / F5 User / Password / Login [Logoff]’ for Re-login and Logoff. |
FAQ:
Q1. Can I have a sample order for weighing indicator?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than 100pcs.
Q3. Do you have any MOQ limit for order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for weighing indicator?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the overlay of weighing indicator?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample. Customization overlay is free once the quantity more than 20pcs.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 12 months warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new component or new weighing indicator with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
