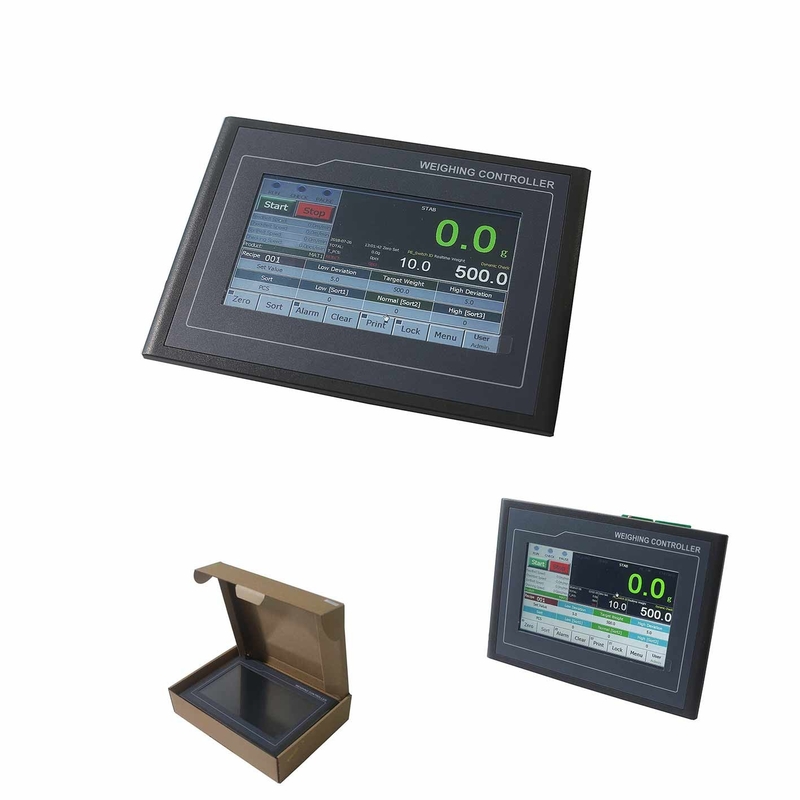

Checking And Sorting Function Weighing Indicator For Auto Checkweigher Scale
Product Details:
| Place of Origin: | China |
| Brand Name: | SUPMETER |
| Certification: | CE |
| Model Number: | BST106-M10[CK] |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negociation |
| Packaging Details: | carton box |
| Delivery Time: | 5-10 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000pcs/month |
|
Detail Information |
|||
| Size Option: | 7 Inch And 10 Inch | Loadcell Max. Connection Quantity: | 16 Loadcells (350Ω) |
|---|---|---|---|

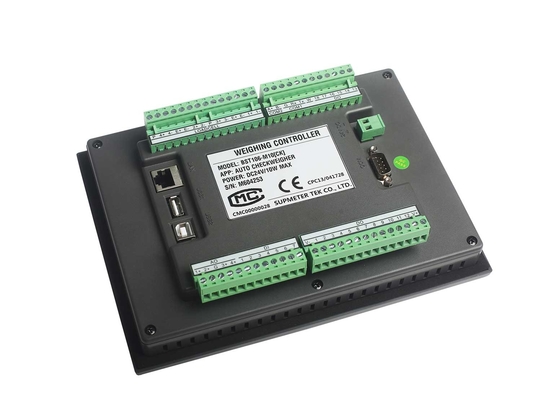

| Communication: | RS232 And RS485 | I/O Interface: | 7 DI And 18 DO |
| AO: | 4*AO (0~10V) | Additional Option: | Ethernet Communication |
| Highlight: | belt speed sensor,checkweigher load cell indicator |
||
Product Description
Checking And Sorting Function Weighing Indicator For Auto Checkweigher Scale
1.Optional Application Mode: Rejecting Mode [Low/Normal/High] and Weight Sorting Mode with 3-18 Sorting Areas
2. Optional Control Modes for Feeding /Checking/Sorting Conveyors: DO Switch Control Mode, PWM Speed Regulation Mode and AO[0-10V] Speed Regulation Mode.
Operating Specification
- Operating Voltage: DC24V±20%.
- Max. Power Consumption: 10W.
- 7”[Big] Touch Screen
- Outline Size: 226.5×163.5×54mm [W×H×D].
- Window Size: 154×87.5mm [W×H].
- Box Body Size: 213×150mm [W×H].
- Panel Cut-out Size: 215×152mm [W×H].
- Weight: Approx. 0.72kg.
- 7”[Small] Touch Screen without LAN Port
- Outline Size: 203×149×54mm [W×H×D].
- Window Size: 154×87.5mm [W×H].
- Box Body Size: 190×136mm [W×H].
- Panel Cut-out Size: 192×138mm [W×H].
- Weight: Approx. 0.67kg.
- 10.2” Touch Screen
- Outline Size: 274×193×58mm [W×H×D].
- Window Size: 222.5×125mm [W×H].
- Box Body Size: 259×178 [W×H].
- Panel Cut-out Size: 261×180mm [W×H].
- Weight: Approx. 1.2kg.
- Protection Level of Front Panel: IP65.
- Operating Temperature: -25℃ to +45℃.
- Storage Temperature: -30℃ to +60℃.
- Relative Humidity: Max. 85%RH.
Package: 1pcs per box
