High accurancy DC24V Force Value Weighing Indicator Controller Positive And Negative Direction
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | SUPMETER |
| Certification: | CE |
| Model Number: | BST106-B60[F] |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 UNIT |
|---|---|
| Price: | 150USD PER UNIT |
| Packaging Details: | CARTON PACKING |
| Delivery Time: | 5 WORKING DAYS |
| Payment Terms: | T/T |
| Supply Ability: | 1000 UNIT PER MONTH |
|
Detail Information |
|||
| Material: | Steel | Display: | Positive And Negative Value |
|---|---|---|---|
| Communication: | RS485 | Weight: | 0.5kg |
| Highlight: | digital weighing controller,programmable weighing controller |
||
Product Description
Positive and Negative Direction Force Value Weigh Controller Power:DC24V Commnication Port :RS232 AO[4-20mA]
Main Applications
- Positive&Negative Direction Real-time Force Value Display.
- Peak Value Detection / Display Holding.
- DO Alarm Output.
- Force Signal AO/Digit Transmission.
- Positive/Negative/Double Direction Modes.
- Threshold / DI Pulse / DI Switch / DI Jump Start&Stop Modes
- Technical Specification
| 1 | Power Supply: DC24V±20%, Max. 5W. |
| 2 | Loadcell Excitation Voltage/Current: DC9V/120mA. |

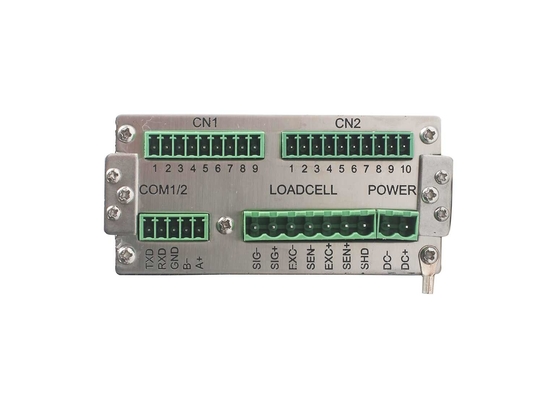

| 3 | 4 Loadcells[350Ω] connectable. |
| 4 | Force Signal Input Range: 0~22.5mV. |
| 5 | 6 Normally Open Switch Inputs [DI]. |
| 6 | 5 Normally Open Relay Outputs [DO]: AC250V/DC24V, 1A. |
| 7 | 1 Analog Signal Output [AO]: 4~20mA, 0.05%FS. |
| 8 | COM1: RS232. |
| 9 | COM2: RS485. |
| 10 | Connect Host IPC[Modbus] & Remote Display. |
| 11 | Outline Size [W×H×D]: 110 × 62 × 150 mm. |
| 12 | Panel Cut-out Size [W×H]: 94 × 47 mm. |
| 13 | Operating Temperature: -25℃～+45℃ |
| 14 | Protection Level of Front Panel: IP65. |
| 15 | Accuracy Grade: III. |
| 16 | Verification Accuracy: 0.03%. |
| 17 | Static Force Measuring Accuracy: 0.2%~0.5%. |
Main Specification:
- EMC design with high anti-jam for industrial environment.
- DC24V power input with reverse polarity protection.
- 32-bit ARM CPU with 48MHz clock & high arithmetic speed.

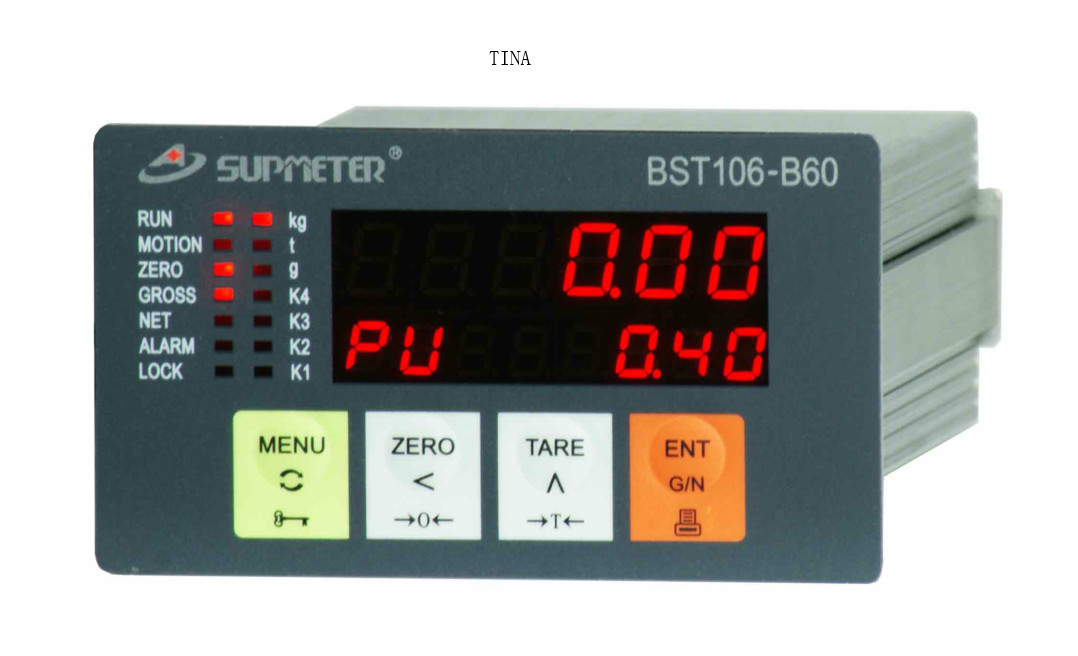

- 6+8 Red LED digital tubes for English&digit display.
- 24-bit ∑-△ADC with internal resolution 1/1,000,000.
- High sampling frequency 3200Hz.
- Optional Special Anti-vibration Digital Filtering Algorithm for precise force measuring, stable display and rapid response
- Auto Zero Tracking.
- Load Calibration, Data Calibration & Segmenting Correction.
- Definable AO/COM[Communication Port].
Optional:
1 definable AO(4-20mA)
- Operating Specification
- Operating Voltage

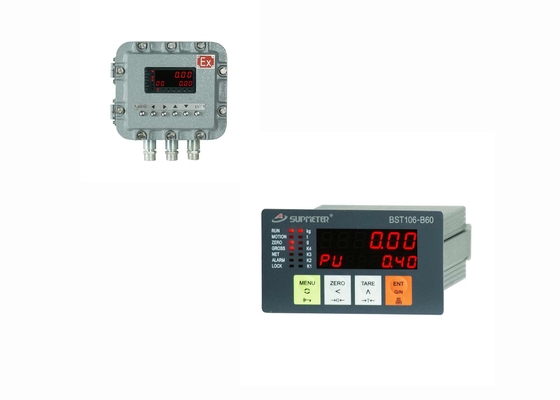

- Model Panel-mounting: DC24V±20%.
- Model Explosion-proof: AC110~240V, 50/60Hz.
- Max. Power Consumption: 5W.
- Outline Size

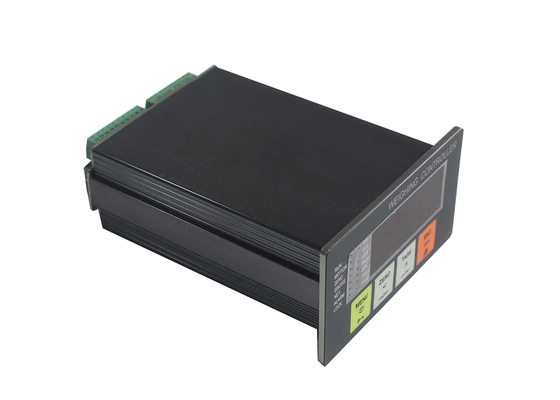

- Model Panel-mounting: 110×62×150mm [W×H×D].
- Model Explosion-proof: 256×290×166mm [W×H×D].
- Panel Cut-out Size
- Model Panel-mounting: 94×47 mm [W×H].
- Operating Temperature: -25℃ to +45℃.
- Storage Temperature: -30℃ to +60℃.
- Relative Humidity: Max. 85%RH.

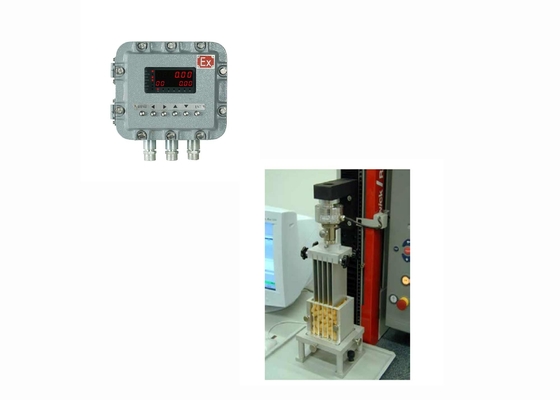

- Application Environment of Model Explosion-proof
- Explosion gas environment: Zone 1&2.
- Classes of explosion gas mixture: IIA, IIB.
- Temperature grades of explosion gas mixture: T1~T6.
- Ex-mark: Ex d IIB T6 Gb.
- Protection Level
- Front Panel of Model Panel-mounting: IP65.
- Model Explosion-proof: IP65.
- Weight
- Model Panel-mounting: Approx. 0.5kg.
- Model Explosion-proof: Approx. 9.2kg.
