Load Cell Signal Weighing Controller With 4-20mA Analog Output COM RS232 RS485
Product Details:
| Place of Origin: | China |
| Brand Name: | Supmeter |
| Certification: | CE |
| Model Number: | BST106-B60S(L) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | 30-50usd/pcs |
| Packaging Details: | 1pcs/box |
| Delivery Time: | 1-3days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000pcs/day |
|
Detail Information |
|||
| Power Supply: | DC24V | COM1: | RS232 |
|---|---|---|---|
| COM2: | RS485 | Outline Size: | 107*60*100mm |
| Loadcell: | 8 Loadcell Connectable 350ohm | Product Name: | Mini Weighing Controller BST106-B60S(L) |
| Highlight: | digital weighing controller,programmable weighing controller |
||
Product Description

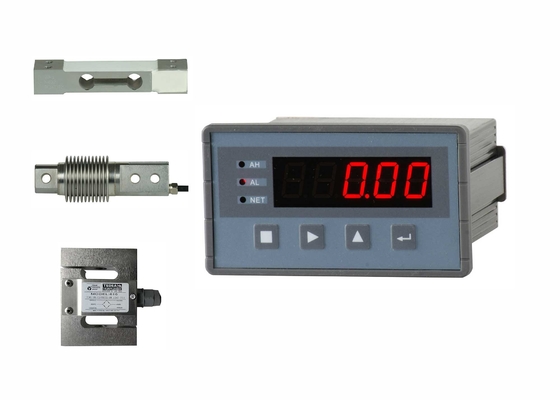

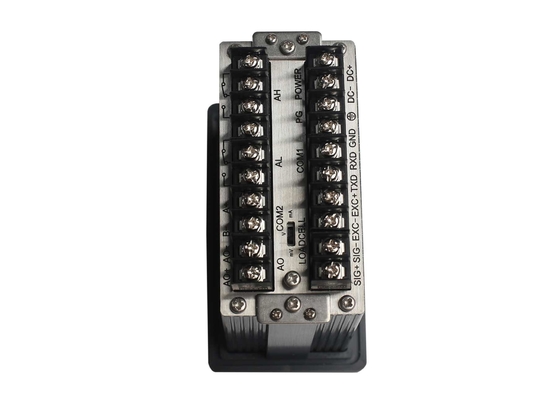

Load Cell Signal Indicator Weighing Controller With 4-20mA Analog Output, COM RS232 RS485
Main Features:
1. Applications: Weight/Force Display, Peak Value Detection&Display Holding, Setpoint DO Output And AO/Digit Transmission.
2. 4 Optional Setpoint DO Output Modes: Weight Limit DO Alarm Mode, Weight Increment DO Output Mode, Weight Decrement DO Output Mode And Weight Section DO Output Mode.
3. EMC Design With High Anti-Jamming Capability, Suitable For Industrial Environment.
4. 32-Bit ARM CPU With 48MHz Clock & Higher Arithmetic Speed.
5. 5 Red LED Digital Tubes For English Character And Digit Display.
6. 24-Bit High-Precision And High-Speed ∑-△A/D Conversion Module With 1/1,000,000 Internal Resolution And Sampling Frequency 1280Hz.
Technical Specification
1. Executing Standard
2. CMC GB/T 7724-2008PRC National Standard.
3. OMIL R76: 2006International Recommendation.
4. Accuracy Grade: III.
5. Verification Accuracy: 0.03%.
6. Static Weighing Accuracy: 0.2%~0.5%.
|
Power Supply |
DC24V±20% |
|
Display |
5 Red Led Digital Tubes for English&Digit Display |
|
Sampling Frequency |
1280Hz |
|
A/D Convert |
24-bit |
|
Keypad |
4 keys for Shortcut mode operation with key tone |
|
Excitation Voltage Output of Loadcell |
DC5V |
|
Max. Connection number of Loadcell |
8 Loadcells (350Ω) |
|
[mV]Signal Input Range |
0-19.5mV |
|
DO |
2 Normally Open Transistor Switch Outputs |
|
AO |
1Analog Signal Output: 4~20mA. |
|
Communication Port |
COM1:RS232;COM2:RS485 |
|
Outline Dimension |
107 × 60 × 100 mm (W×H×D) |
|
Net Weight |
Approx. 1.2kg |
|
IP Grade |
IP65 |
|
Verfication Accuracy |
0.03% |
|
Static Weighing/Force Measuring Accuracy |
0.2%~.5~ |
Keypad Operation
If there is not any keypad operation in one minute and it’s not in the processes of ‘F2 System Calibration’ & ‘F6 Factory Adjustment’, the controller will return to ‘Main Display Interface’ automatically.
|
Menu Operation |
|
|
Key Name |
Description |
|
【■】 |
Enter Main Menu / Exit. |
|
【8】 |
Enter / Save / Alarm Acknowledge. |
|
【►】 |
Cursor shifts right. Display the previous option. |
|
【▲】 |
Display the next interface or option. Digit input: +1 ( 0~9 loop). |
Model Panel-mounting Operation Interface
Installation
Package
