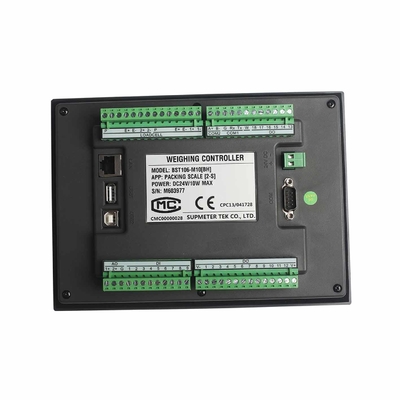

CE Approved Double Hopper Bag Filling Weighing Controller
Product Details:
| Place of Origin: | China |
| Brand Name: | SUPMETER |
| Certification: | CE |
| Model Number: | BST106-M10[BH] |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | 298usd/pcs |
| Packaging Details: | 1pcs/box |
| Delivery Time: | 1~10 working days |
| Payment Terms: | T/T, Western Union, L/C, D/A, D/P |
| Supply Ability: | 200pcs per month |
|
Detail Information |
|||
| Customization: | Available | Application: | Single Scale Mode & Double Scale Mode |
|---|---|---|---|
| Verification Accuracy: | 0.02% | Static Weighing Accuracy: | 0.2%~0.5% |
| Packing Accuracy: | 0.2%~0.5% | IP Grade: | IP65 |
| Highlight: | Bag Filling Weighing Controller,CE Weighing Controller,Double Hopper Weighing Controller |
||
Product Description
Double Hopper/Bag Filling Controller, High Speed 16pcs/Min Weight Packaging Controller BST106-M10(BH)
Main Features:
1. Suitable for Ration Packing Scale with optional modes 1-Bucket Scale, 1-Bag Scale, 2-Bucket Scale[1-Bag] , 2-Bucket Scale[2-Bag] and 2-Bag Scale.
2. EMC design with high anti-jamming capability, suitable for industrial environment.
3. Cortex-A8 CPU with 600MHz Clock, 128M RAM and 128M Flash.
4. 7”/10.2” Ultralight and ultrathin TFT touch screen with embedded weighing/control module.
Main Features
EMC design with high anti-jam for industrial environment.
DC24V power input with reverse polarity protection.
Cortex-A8 CPU with 600MHz Clock, 128M Flash.
7” [800×480] or 10.2” [1024×600] TFT touch panel.
24-bit Σ-△ADC with internal resolution 1/1,000,000.
High sampling frequency 800Hz.
Special Anti-vibration Digital Filtering Algorithm for precise weighing, stable display and rapid response.
Auto Zero Tracking.
Fall Value Auto Correction.
Auto Pause for Deviation Alarm.
Auto Re-feed for Negative Deviation Alarm.
Target Batch Count & Target Batch Weight Control.
3-speed[high/medium/low] feeding control by DOs or AOs.
Definable DI/DO/AO/COM[Communication Port
Technical Specifications
Power Supply: DC24V±20%, Max. 10W.
Loadcell Excitation Voltage/Current: DC5V/250mA.
16 Loadcells[350Ω] connectable.
Weighing Signal Input Range: 0~12.5mV.
9 Normally Open Switch Inputs [DI].
18 Normally Open Transistor Outputs [DO]: DC24V, 500mA.
2 Analog Signal Outputs [AO]: 0~10V, Max.50mA.
COM&COM1: RS232; COM2: RS485.
USB1: Connect mouse, software download, data backup.
LAN: Optional Ethernet.
7”Touch Screen
Outline Size: 226.5×163×56mm [W×H×D].
Window Size: 153.6×86.64mm [W×H].
Box Body Size: 213×150mm [W×H].
Panel Cut-out Size: 215×152mm [W×H].
Weight: Approx. 0.72kg.
10.2” Touch Screen
Outline Size: 274×193×56mm [W×H×D].
Window Size: 220.8×132.9mm [W×H].
Box Body Size: 259×178 [W×H].
Panel Cut-out Size: 261×180mm [W×H].
Weight: Approx. 1.2kg.
User Login Interface
| Name | Operation | Note |
| 【Login】 |
User Login. Exfactory Passwords:
|
Operation ‘Main Menu / F5 User / Password / PSW Set’ for Modifying Password. |
| 【User Name】 | After password inputted, the matching User Name will be displayed. |
|
| 【Operate】 | Enter ‘Main User Interface’. | Operation ‘Main Menu / F5 User / Password / Login [Logoff]’ for Re-login and Logoff. |

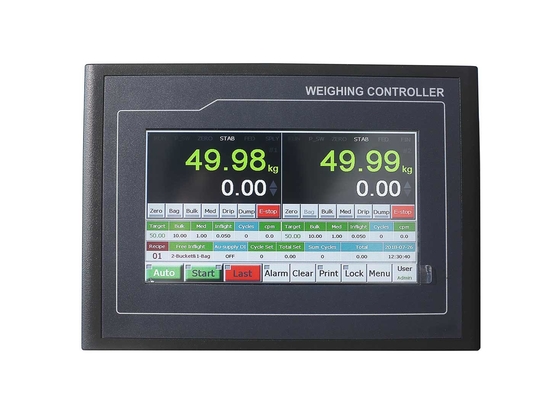

Main User Interface
Installation Mode

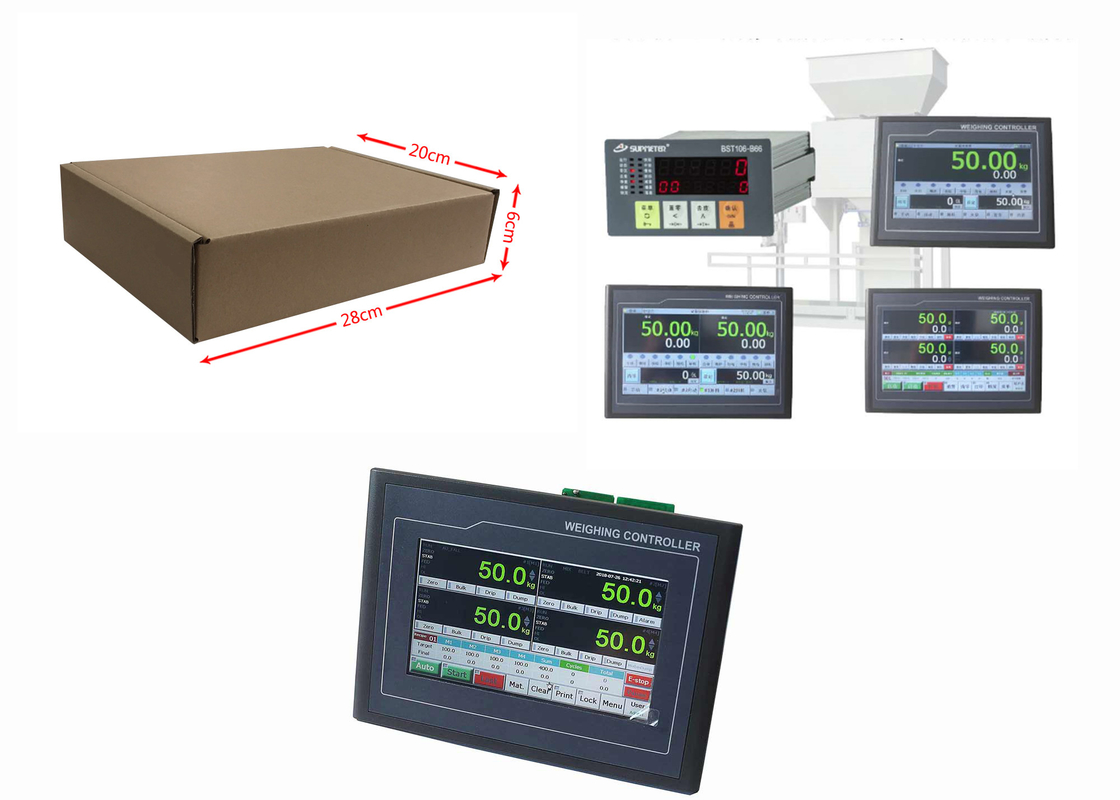

Package:
Delivery
