Wheel Loader Weight Instrument, Loader Scales With Stability Performance High Accuracy
Product Details:
| Place of Origin: | China |
| Brand Name: | SUPMETER |
| Certification: | CE |
| Model Number: | BST106-N59[B] |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiating |
| Packaging Details: | carton box |
| Delivery Time: | 2-15 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 500sets/month |
|
Detail Information |
|||
| Power Supply: | DC24V/DC12V | Shell: | Stainless Steel |
|---|---|---|---|
| Save Records: | 10000 | USB: | Support |
| RS232: | Support | ||
| Highlight: | truck scale indicator,on board weighing systems for loaders |
||
Product Description
Wheel Loader Weight Instrument, Loader Scales With Stability Performance High Accuracy

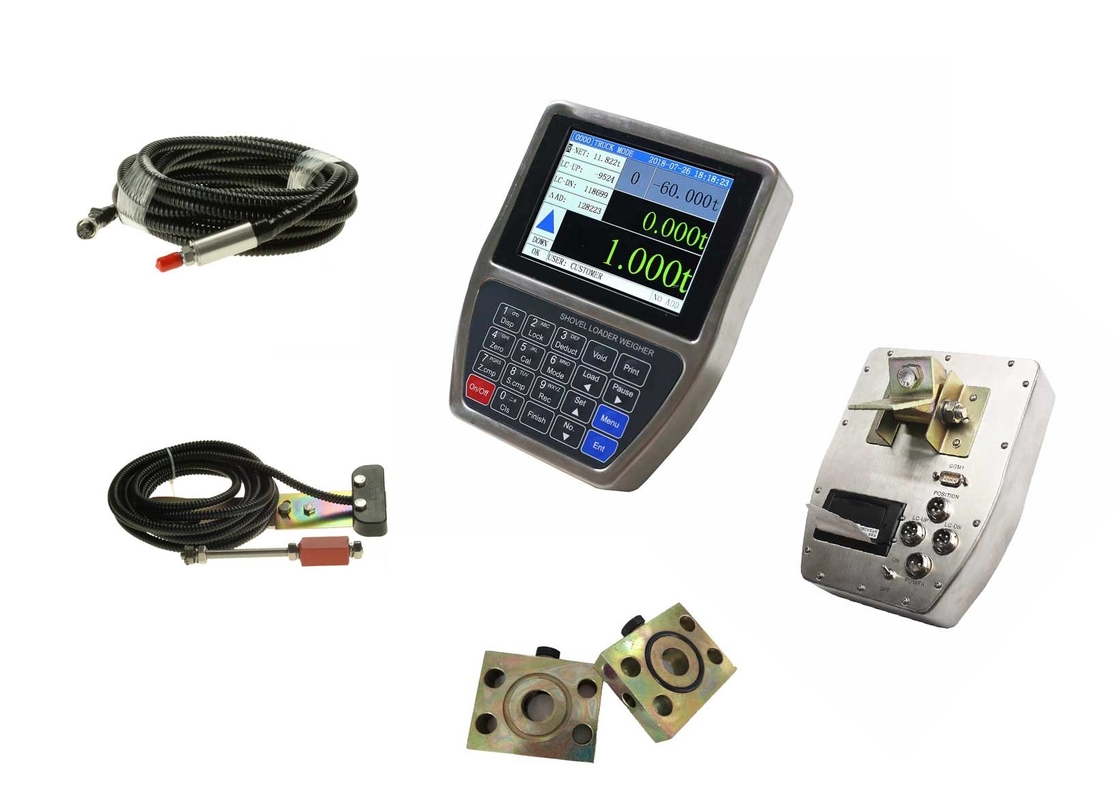

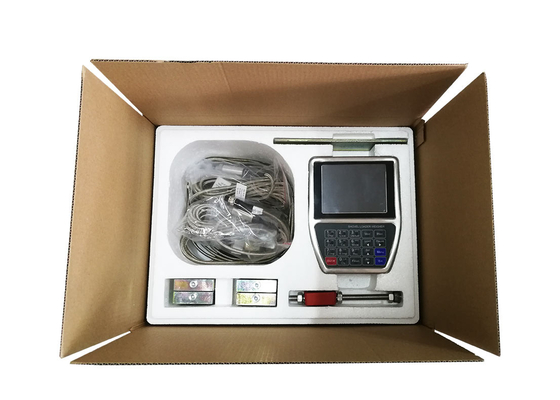

1. Configuration:
Weighing Indicator * 1pcs
Oil pressure Sensor * 2pcs
Position Sensor * 1 set
Three-way joint * 2pcs
Built-in printer * 1pcs
2. Technical Specification:
| Oil Pressure Sensor Interface | |
| Excitation Voltage/Max.Current | DC12V/100mA & DC5V/100mA |
| Signal Input Range | Optional 0~20mV, 0~5V[Factory Set Value] |
| Sampling Frequency | 400Hz |
| Position Sensor Input Interface | |
| Output Voltage | DC12V |
| Max. Output Current | 100mA |
| Digital Communication Interface | |
| COM1 | RS232 |
| Internal COM2 | Optional wireless serial communication module |
| Internal COM3 | Connected Thermal Serial Printer, Baud Rate 9600bps, No Parity Check Bit |
| Protection Level | IP65 |
| Weight | Approx. 9.5kg |
3. Structure of Wheel loader
Related Operation Terms:
1. Arm-up: Lift the lift-arm so that the bucket rises.
2. Arm-down: Put the lift-arm down so that the bucket goes down to the lowest position.
3. Bucket-up: Flip the bucket upward to the limit position.
4. Bucket-down: Flip the bucket downward.
5. Discharge: Flip the bucket downward for discharging materials.
6. Shovel: Shovel materials into the bucket.

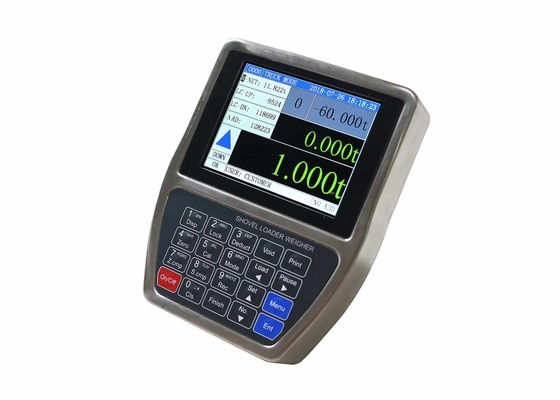

Operation in Loading Process
| Key Name | Description |
| 【Load】 |
Enter Loading state with blue sign ‘▲’ displaying. Let the bucket of wheel loader stay at the lowest position before pressing【Load】. |
| 【Finish】 | Truck Mode: Save the current Loading Record and Clear Screen after the truck-loading process finished. |
| Mix Mode: Save the Loading Record of the current Material No. and Clear Screen. | |
| 【No.】 | Truck Mode: it’s for inputting Truck No.. |
|
Mix Mode: It’s for changing Material No.. After the new Material No. inputted, the current Material No.’s Loading Record will be saved automatically, and then the new Material No.’s historical Loading Record will be displayed again for material-reloading operation. |
|
| Axle Type Mode: It’s for inputting Truck Axle Number and Truck Tare Weight. | |
| 【Pause】 | Enter Pause state with red sign ‘■’ displaying. |
| 【Void】 | Cancel Totalizing: If the present Single-bucket-loading-weight is not accurate, press the key to deduct it from Totalized Loading Weight. |
| 【Print】 | Print Loading Records. |
| 1/【Disp】 | Display Interface Switch. |
| 2/【Lock】 |
|
| 3/【Deduct】 |
Do【Deduct】operation if the present Single-bucket-loading-weight is excessive. After entering the working state of 【Deduct】, the present Single-bucket-loading-weight will be deducted from Totalized Loading Weight, and the realtime weight of the materials in the bucket will be tracked and displayed in the display area [14]. After the materials in the bucket reduced according to the actual need, press the key 【Ent】 to totalize the weight of the remaining materials in the bucket to Totalized Loading Weight. |
| 9/【Rec】 | F3 Record Management [Query/Clear/USB Copy]. |
| 0/【Cls】 | Clear Screen without Saving Present Loading Record. |
| 【Ent】 |
Backlight Switch of Keypad. Auto-on time of keypad backlight: 17:00~8:00. Auto-off time of keypad backlight: 8:00~17:00. |
| Check if the U-disk is ready. | |
| 【On/Off】 |
|
Communication Parameters
| No. | Range | Default | Description | Set |
| 900 | 0~1 |
0 [*] |
Language 0: Chinese 1: English |
|
| 901 | 0.1~2.0 | 0.5 |
Disp.RefreshTime [s] Display Refreshing Time. |
|
| 902 | 0~1 | 0 |
Auto-Locking 0: OFF 1: ON [If there is not any keypad operation in one minute and it’s not in the processes of ‘F2 Calibration’ & ‘F7 Factory Adj.’, the weighing indicator will lock the keypad and return to ‘Main Display Interface’ automatically] |
|
| 903 | 0~2 |
0 [*] |
Date Format 0: YYYY. MM. DD [Year. Month. Day] 1: MM. DD. YYYY [Month. Day. Year] 2: DD. MM. YYYY [Day. Month. Year] |
|
| 904 | 00.00~23.59 | 7.59 | Shift1 End Time | |
| 905 | 00.00~23.59 | 15.59 | Shift2 End Time | |
| 906 | 00.00~23.59 | 23.59 | Shift3 End Time |
