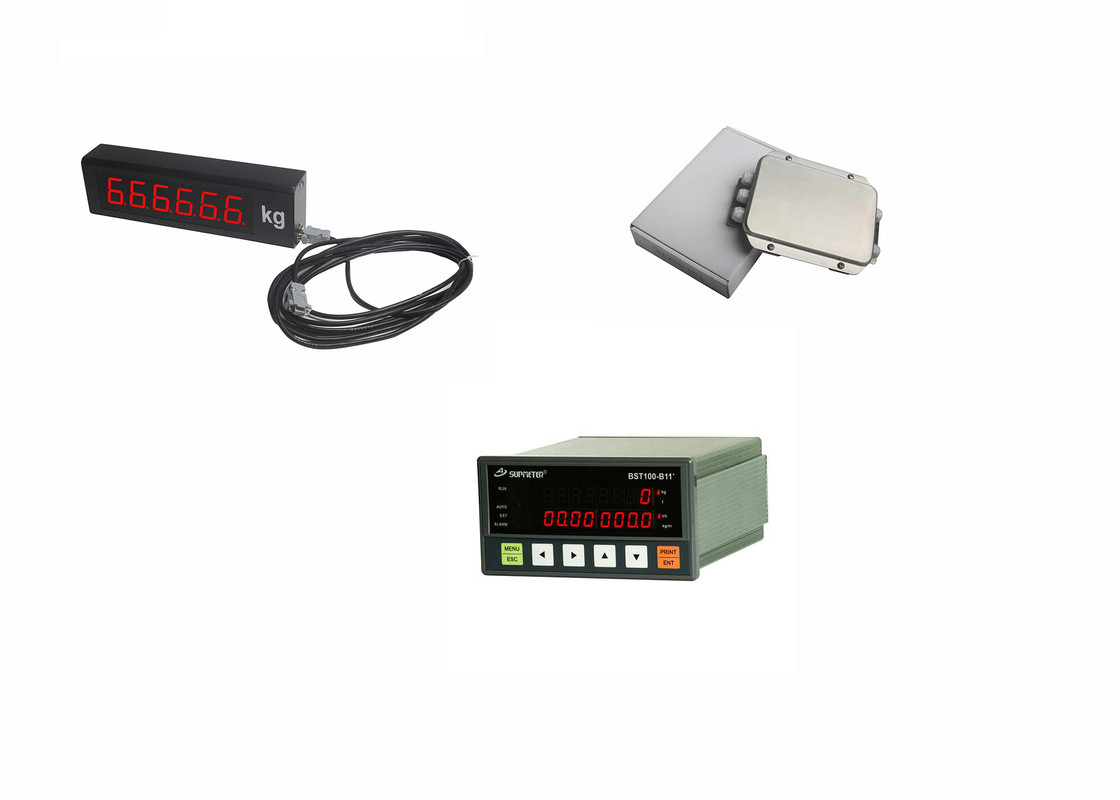

High Accuracy Grade 0.5 Digital Led Weighing Indicator For Belt Scale

Product Description

High Accuracy Grade 0.5 Digital Led Weighing Indicator for Belt Scale

Data Clearing Mode Description:

• Manual Clearing Mode

• 1 Clear Screen: Clear Totalized Weight and Totalized Weight Pulse Count. But Totalized Weight of Current Shift will not be cleared, so this operation has no effect on recording of weight per shift.
• 2 Clear Weight: Clear Totalized Weight, Totalized Weight Pulse Count and Totalized Weight of Current Shift. The cleared value of Totalized Weight of Current Shift will not be recorded.
• 3 Clear Records: Clear History Records of Totalized Weight. But Current Totalized Weight, Totalized Weight Pulse Count and Totalized Weight of Current Shift will not be cleared.

• Timing Auto Clearing Mode

• The parameter ‘[P606] Auto-clear’ can be set to ‘0: OFF / 1: Per Shift / 2: Per Day / 3: Per Month’, and its default value is ‘0: OFF’.
• ‘Timing Auto Clearing’ has no effect on recording of weight per shift.
• [P606]=‘1: Per Shift’: After recording Totalized Weight per Shift, do operation ‘Clear Screen’ automatically.
• [P606]=‘2: Per Day’: After recording Totalized Weight of the last Shift per Day, do operation ‘Clear Screen’ automatically.
• [P606]=‘3: Per Month’: After recording Totalized Weight of the last Shift per Month, do operation ‘Clear Screen’ automatically.

• Auto Clearing Before Overflowing Mode

• When Totalized Weight value reaches to the maximum value 2×10⁹[Scale Unit], do operation ‘Clear Screen’ automatically.
• ‘Auto-clear Before Overflowing’ has no effect on recording of weight per shift.

Model Panel-mounting / Wall-mounting Keypad Operation

     If there is not any keypad operation in one minute and it’s not in the processes of ‘F2 Calibration’ & ‘F6 Factory Adj.’, the controller will return to ‘Main Display Interface’ automatically.

Technical Specifications
 Power Supply: DC24V±20%, Max. 5W.
 Loadcell Excitation Voltage/Current: DC5V/120mA.
 8 Loadcells[350Ω] connectable.
 Transmitter Excitation Voltage/Current: DC12V/100mA.
 Optional weighing input signal mV, V and mA.
 【mV】Signal Input Range: 0~19.5mV.
 【V】Signal Input Range: 0~2.5V, 0~5V, 0~10V.
 【mA】Signal Input Range: 0~20mA.
 2 Normally open/closed Relays [DO]: AC250V/DC24V, 1A.
 1 Analog Signal Output [AO]: 0~20mA, 0.05%FS.
 COM1: RS232.
 COM2: RS485.
 Connect Host IPC[Modbus] & Remote Display.
 Outline Size [W×H×D]: 107 × 60 × 100 mm.
 Panel Cut-out Size [W×H]: 94 × 47 mm.
 Operating Temperature: -25℃～+45℃.
 Protection Level of Front Panel: IP65.
 Accuracy Grade: III.
 Verification Accuracy: 0.03%.
 Static Weighing / Force Measuring Accuracy: 0.2%~0.5%.

Model Panel-mounting User Interface

Model Panel-mounting Terminal

Ration Flow Auto-Feeding System:
