Loss In Weight Weigh Feeder Controller Belt Speed Sensor With Ration Flow Feeding
Product Details:
| Place of Origin: | China |
| Brand Name: | Supmeter |
| Certification: | CE |
| Model Number: | BST100-E11 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton |
| Delivery Time: | 3workdays |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 10000pcs/month |
|
Detail Information |
|||
| Power Supply: | AC220V | Material: | Steel |
|---|---|---|---|
| Accuracy Of Flow Control: | 0.5%~1.0% | Accuracy Grade: | 0.5 |
| Max. Connection Number Of Loadcell: | 8 Loadcells (350Ω) | Communication Port: | COM1:Optional RS232/RS485/RS422/ Profibu-DP/Ethernet; COM2:RS485 |
| Highlight: | programmable load cell controller,load cell indicator |
||
Product Description

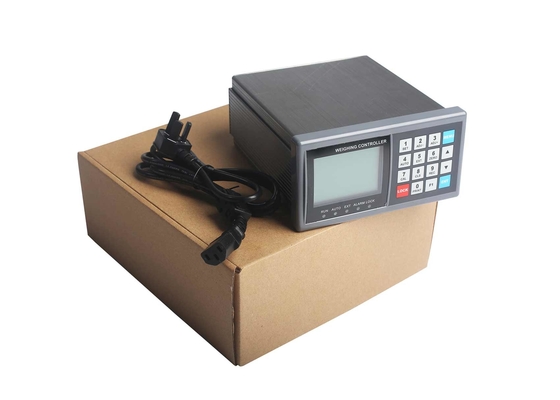

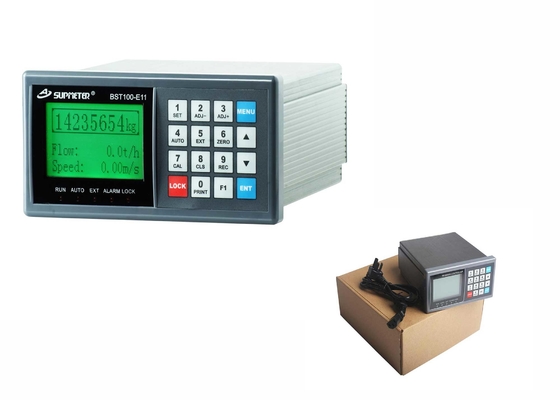

Loss In Weight Weigh Feeder Controller Belt Speed Sensor With Ration Flow Feeding
Technical Specification
Executing Standard
- CMC GB/T 7724-2008PRC National Standard.
- OMIL R50:1997International Recommendation.
- Accuracy Grade: 0.5.
- Accuracy of Flow Control: 0.5%~1.0%.
Display

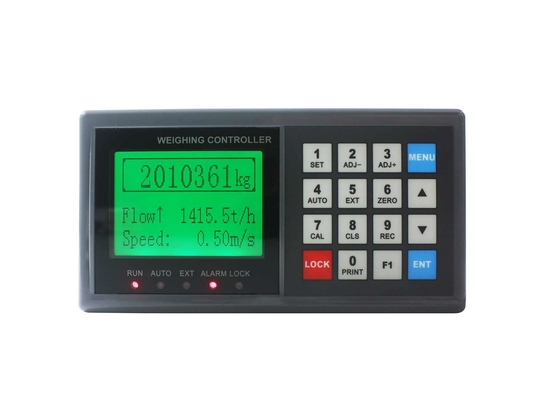

- 128×64 LCD display screen with 7 background colors for English display.
- Display Refreshing Time: Setting Range 0.1~2.0s.
Keypad
- 16-key English keypad.
- Menu&Shortcut operation with key tone.
Loadcell Interface
- Excitation Voltage/Max. Current: DC10V/250mA [8-350Ω loadcells].
- Signal Input Range: 0~25mV.
- ∑-△ADC: 24-bit, 100,000 internal code used.
- Sampling Frequency: 200Hz.
- Zero Drift: ±0.1μV/℃ RTI (Relative to Input).
- Gain Drift: ±5ppm/℃.
- Non-linearity: 0.005%FS.

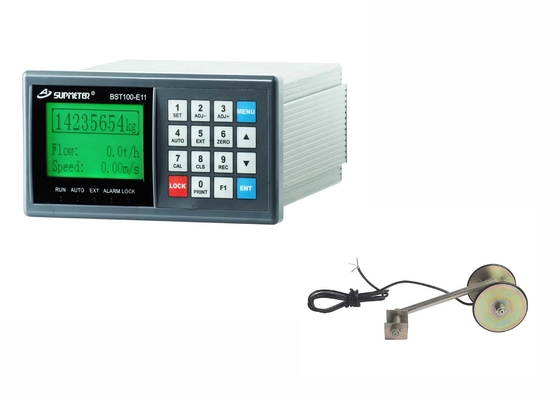

Speed Sensor Interface
- Output Voltage/Max. Current: DC12V/100mA.
- Speed Pulse Input Range: 0.5~3000Hz.
Switch Signal Interface
- 3 Normally Open Switch Inputs [DI].
- 4 Normally Open Relay Switch Outputs [DO]: AC250V/DC24V, 1A.
- 1 ‘Totalized Weight High-speed Pulse’ Output [PO]: 100mA, DC5~24V; Weight per Pulse and Pulse Width can be preset.
Analog Signal Interface
- Max.3 Definable ‘Flow/Control Current /…’ Analog Signal Outputs [AO]: 4~20mA, Non-linearity: 0.05%FS; AO3 is optional.
- 1 Optional ‘Flow Setpoint’ Analog Signal Input [AI]: 4~20mA, Non-linearity: 0.05%FS.
Digital Communication Interface
- COM1: Optional RS232/RS485/RS422/Profibus-DP/Ethernet modules.
- COM2: RS232.
- Connectable: IPC/PLC, LED Remote Display, Serial Printer and Wireless Module.
Report Print
Weight Records per shift/day/month of a year can be queried and printed
Operating Specification
Operating Voltage: AC220V±15%, 50/60Hz
Max. Power Consumption: 5W.
Outline Size and Weight
- Model Wall-mounting: 202×305×90mm [W×H×D].
- Model Wall-mounting: Approx. 3.4kg.
Operating Temperature: -25℃ to +45℃.
Storage Temperature: -30℃ to +60℃.
Relative Humidity: Max. 85%RH.
Application Environment of Model Explosion-proof
- Explosion gas environment: Zone 1&2.
- Classes of explosion gas mixture: IIA, IIB.
- Temperature grades of explosion gas mixture: T1~T6.
- Ex-mark: Ex d IIB T6 Gb.
Protection Level
- Front Panel of Model Panel-mounting: IP65.
- Model Wall-mounting: IP65.
Keypad Operation
If there is not any keypad operation in one minute and it’s not in the processes of ‘F2 System Calibration’ & ‘F6 Factory Adjustment’, the controller will return to ‘Main Display Interface’ automatically.
| Menu Operation | |
| Key Name | Description |
|
【MENU】 (【ESC】) |
Enter Main Menu. Exit. |
| 【ENT】 | Enter/Save. |
| 【▲】 |
Cursor shifts up or left. Display the previous interface or option. |
| 【▼】 |
Cursor shifts down or right. Display the next interface or option. |
| 【0~9】 | Digit Input. |
| Quick Operation | |
| 【LOCK】 |
|
| 【F1】 | Return to the initial display interface. |
| 【SET】 | Flow Set Value Setting. |
| 【ADJ-】 | Control Current -1mA. |
| 【ADJ+】 | Control Current +1mA. |
| 【AUTO】 | ‘Manual/Auto’ Control Mode Selection. |
| 【EXT】 | ‘Internal/External’ Flow Set Mode Selection. |
| 【ZERO】 | Zero Calibration. |
| 【CAL】 | Dynamic Span Calibration. |
| 【CLS】 | Clear Screen: Clear display value of Totalized Weight. |
| 【REC】 | Query and print Weight Record. |
| 【PRINT】 | Print. |
Installation:
Model Horizontal Panel-mounting Terminal:
Ration Flow Auto-Feeding System:
