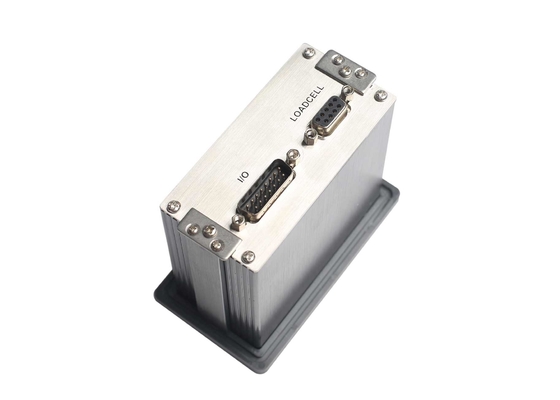

3 direction Real Time Force Measuring Controller Load Cell Indicator Zero Calibration
Product Details:
| Place of Origin: | China |
| Brand Name: | SUPMETER |
| Certification: | CE |
| Model Number: | BST106-B60[R] |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 1pcs/box |
| Delivery Time: | 10-15 working days after got the payment |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 2000pcs per month |
|
Detail Information |
|||
| Power Supply: | DC24V±20% | Accuracy Grade: | III |
|---|---|---|---|
| Verification Accuracy: | 0.03% | Static Force Measuring Accuracy: | 0.2%~0.5% |
| Highlight: | force sensor measurement indicator,industrial weighing systems |
||
Product Description
Force Measuring Controller With LED Display, High Sampling Frequency, Accuracy, RS232, RS485
Application:
BST106-B60R[F] Weighing Controller is widely used in the force measuring industry, with the following functions:
1. 3-Channel Real-time Force Values & Real-time Resultant Force Display
2. 3-Channel Force Peak Values & Resultant Force Peak Value Display
3. Real-time Resultant Force or Resultant Force Peak Value Upper/Lower Limit DO Alarm
4. RS232/RS485 Digit Transmission.
Main Features:
- Main Applications: 3-Channel Real-time Force Values & Real-time Resultant Force Display, 3-Channel Force Peak Values & Resultant Force Peak Value Display, Real-time Resultant Force or Resultant Force Peak Value Upper/Lower Limit DO Alarm, RS232/RS485 Digit Transmission.
- Optional Resultant Force [F] Algorithms: 3-D Algorithm [F2=X2+Y2+Z2] and CUSUM [Cumulative Sum] Algorithm [F=X+Y+Z].
- X&Y&Z sampling channels can be opened and closed via setting the related parameters for 1-Channel, 2-Channel and 3-Channel Force Measuring.
- Optional Force-Measuring Modes: ‘Real-time Value Display&Alarm Mode’ and ‘Peak Value Display&Alarm Mode’.
- DO output can used for ‘Real-time Resultant Force Alarm’ or ‘Resultant Force Peak Value Alarm’.
- Optional ‘Auto Enter Peak&Valley Value Detecting Process after Power-on’ function.
- EMC design with high anti-jamming capability, suitable for industrial environment.
- 32-bit ARM CPU with 48MHz clock & higher arithmetic speed.
- 2×16 LCD display screen with white LED background for English/Digit display.
- 24-bit High-precision and high-speed ∑-△A/D conversion module with 1/1,000,000 internal resolution and sampling frequency 1280Hz.
- Special anti-vibration digital filtering algorithm for ensuring the force measuring stability and accuracy when there is strong vibration on the the force measuring equipment, and the rapid response capability when the force signal changes.
- Max. Connection Quantity: 8 Loadcells (350Ω).
- Zero Calibration, Load Calibration and Data Calibration functions available.
- Digital Setting&Calibration and I/O Testing functions available.
- 4 Normally open switch inputs [DI] and 2 normally open/closed transistor switch outputs [DO].
- Optional RS232 or RS485 communication port for connecting Host IPC/PLC and LED Remote Display.
- With the multitasking mode, the processes of weighing, alarm output and signal transmission will not be interrupted by parameter setting and the other operations.
Technich Specification:
| Display and Keypad | |
| Display | 2×16 LCD display screen with white LED background for English/Digit display |
| Keypad | 4-key keypad for shortcut operation |
| Loadcell Interface | |
| Excitation Voltage/Max. Current | DC5V/120mA [4-350Ω loadcells] |
| Signal Input Range | ±35mV |
| Output Sensitivity | 1.0~7.0mV/V |
| Sampling Frequency | 1280Hz |
| Internal resolution | 1/1,000,000 |
| Switch Signal Interface | |
| DI | 4 Normally Open Switch Inputs |
| DO | 2 Transistor Switch Outputs |
| Digital Communication Interface | |
| COM1 | RS232&RS485 |
| Connectable | Host IPC/PLC and LED Remote Display |
| IP Grade | IP65 |

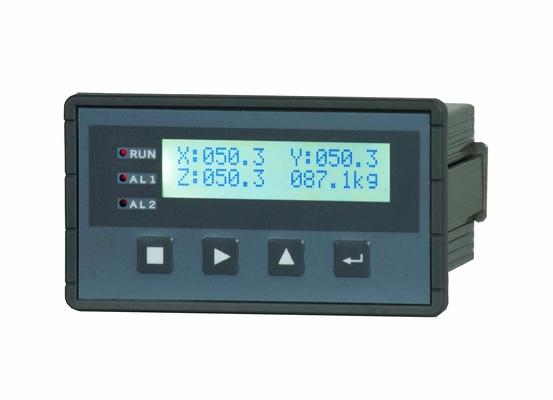

Operation Interface Diagram
Demension:
|
Outline Size W×H×D [mm] |
Front Panel Size W×H [mm] |
Box Body Size W×H [mm] |
Panel Cut-out Size W×H [mm] |
| 107×60×100 | 107×60 | 93×46 | 94×47 |
Package:
