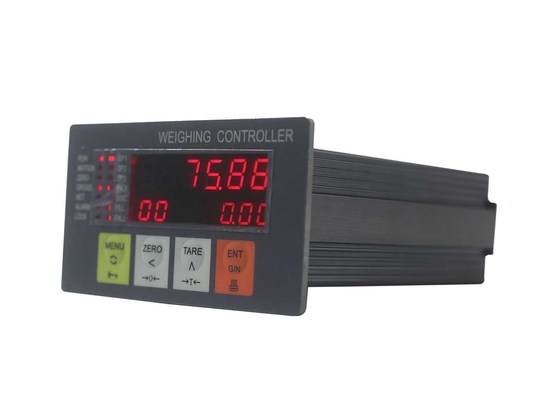

DC24V Small Load Cell Bagging Controller 400 Hz Sampling Frequency , MODBUS RTU Available
Product Details:
| Place of Origin: | China |
| Brand Name: | SUPMETER |
| Certification: | CE |
| Model Number: | BST106-B66[A] |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negociate |

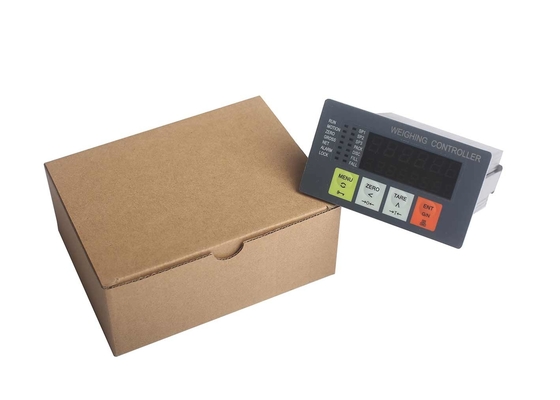

| Packaging Details: | Carton Box |
| Payment Terms: | T/T,Western Union, Alibaba.com |
| Supply Ability: | 500pcs/month |
|
Detail Information |
|||
| Power Supply: | DC24V | Loadcell Connect No.: | 4 Loadcells (350Ohm) |
|---|---|---|---|
| AO: | 4~20mA | Sampling Frequency: | 400Hz |
| Highlight: | packing controller,electrical weighing system |
||
Product Description
DC24V Small Load Cell Bagging Controller 400 Hz Sampling Frequency , MODBUS RTU Available
Application:
Weighing Controller BST106-B66[A] Is for increment ration packing/bagging machine.
- Optional Application Modes:
- Single-hopper-weighing Mode [Single-scale Mode], Double-hopper-weighing Mode [Double-scale Mode]
- Bag-weighing Mode with Auto Bag-releasing or Manual Bag-releasing
- EMC design with high anti-jamming capability, suitable for industrial environment.
- 32-bit ARM CPU with 48MHz clock & higher arithmetic speed.
- 24-bit High-precision and high-speed ∑-△A/D conversion module with 1/1,000,000 internal resolution and sampling frequency 400Hz.
- Special anti-vibration digital filtering algorithm for ensuring the weighing stability and accuracy when there is strong vibration on the load receptor, and the rapid response capability when the weight signal changes.
- Auto Zero Initial Calibration after Power-on, Auto Zero Tracking, Zero Fine Adjustment, Zero Calibration and Load Calibration functions available.
- Optional Data Calibration function.
- Auto-locking, Key-locking, Key-unlocking, Digital Setting&Calibration and I/O Testing functions available.
- Optional ‘High/Medium/Low Speed Feed’ DOs for feeding control. Optional Low-speed Feeding Modes: Continuous Feeding Mode and Inching Feeding Mode.
- Optional ‘Fall Value Auto Correction’ function.
- Optional ‘Auto Pause for Deviation Alarm’ function.
- Optional ‘Target Batch Control’ function [With Target Batch Count or Target Batch Weight finished, the packing process will stop automatically].
- With the multitasking mode, the weighing&control process will not be interrupted by parameter setting and the other operations.
Technicals:
| Accuracy | Accuracy Grade | III |
| Verification Accuracy | 0.03% | |
| Static Weighing Accuracy | 0.2%~0.5% | |
| Packing Accuracy | 0.2%~0.5% | |
| Display | 6+8 Red LED digital tubes for English character and digit display | |
| Keypad | 4-key English keypad | |
| Loadcell | Excitation Voltage/Max. Current | DC9V/120mA [4-350Ω loadcells] |
| Signal Input Range | 0~22.5mV | |
| Output Sensitivity of Loadcell | 1.0~2.5mV/V | |
| Non-linearity | 0.005%FS | |

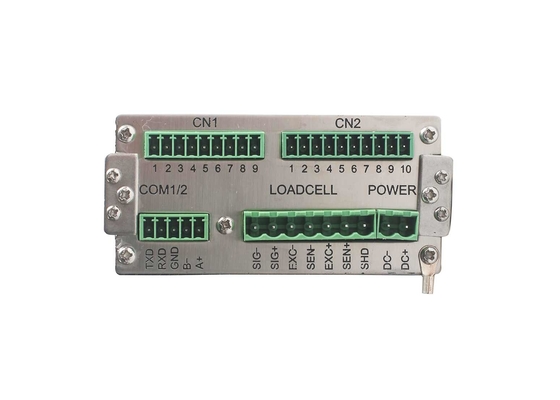

| Switch&Analog Signal Interface | DI | 6 Normally Open Switch Inputs [DI] |
| DO | 8 Normally Open Transistor Switch Outputs [DO]: DC24V, 250mA | |
| AO | 1 Optional&Definable Analog Signal Output [AO]: 4~20mA | |
| Digital Communication Interface | COM1 | RS232 |
| COM2 | RS485 | |
| Connectable | Host IPC/PLC and LED Remote Display | |

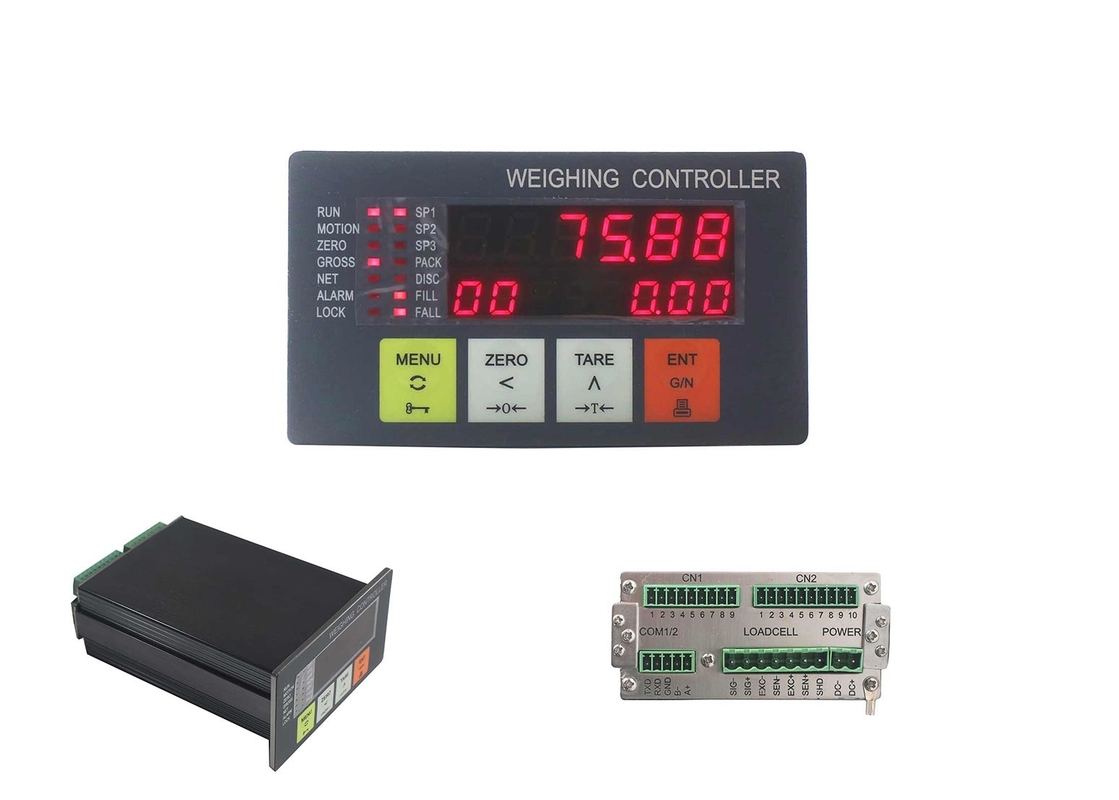

Pictures:
System Diagram for APP1.1 Single-hopper-weighing Mode
System Diagram for APP1.2 Double-hopper-weighing Mode
